Delta robots

DI Series

High-speed pick-and-place with carbon-fibre parallel kinematics. Built for continuous operation where cycle time decides the line rate.

Payload
2 kg
Workspace
Ø500–1000 mm
Max CPM
120
Request a quoteDownload brochure

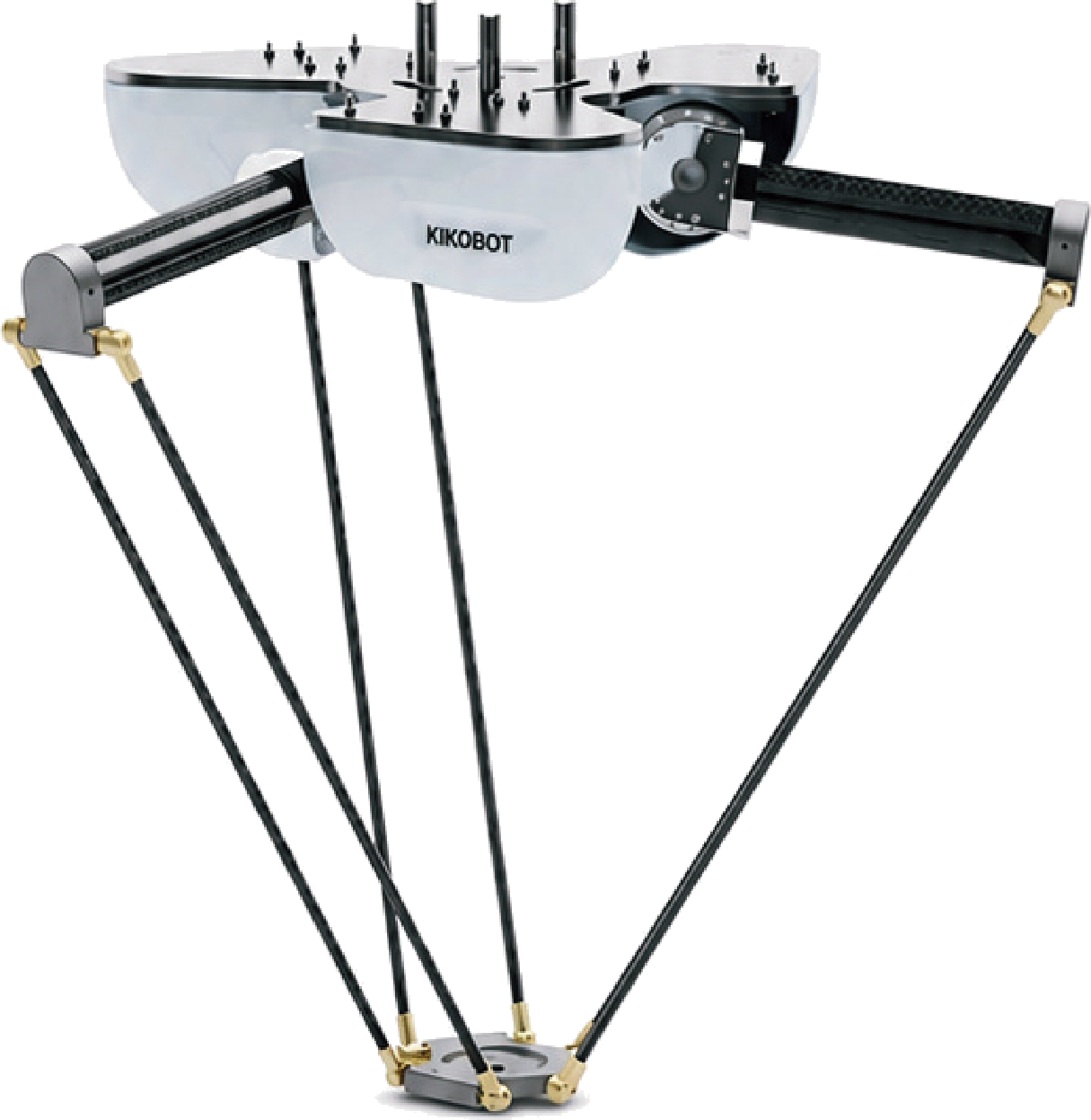

Kikobot DI Series delta robot

Built for speed. Designed for precision.

High speed and accurate

Up to 120 cycles per minute with 0.5 mm repeatability.

Lightweight structure

Carbon-fibre arms for high stiffness and faster cycles.

Easy programming

Drag-and-drop routines in Kikobot Delta Studio.

Quick deployment

Compact modular design for fast setup and minimal downtime.

Smart integration

Pairs with vision systems, grippers and conveyors.

Specifications

Swipe sideways to compare models.

PARAMETERKikobot DI500Kikobot DI1000
Degrees of freedom3 (4 or 5 variants)3 (4 or 5 variants)
Payload2 kg2 kg
WorkspaceØ500 × 220 mmØ1000 × 350 mm
Repeatability0.5 mm0.5 mm
Max CPM120120
Weight (approx.)20 kg20 kg
InstallationOverhead mounting
CommunicationEtherCAT
Control softwareKikobot Delta Studio
Power input · operating temperature100–240 V AC · 0–80 °C

For system integrators

Automate factory floors with us

If you build and commission cells for a living, partner with Kikobot. You get the robots, the software and a team that will stand behind the install.

Become a partnerTalk to sales
