DI500
Ø500 × 220 mm workspace

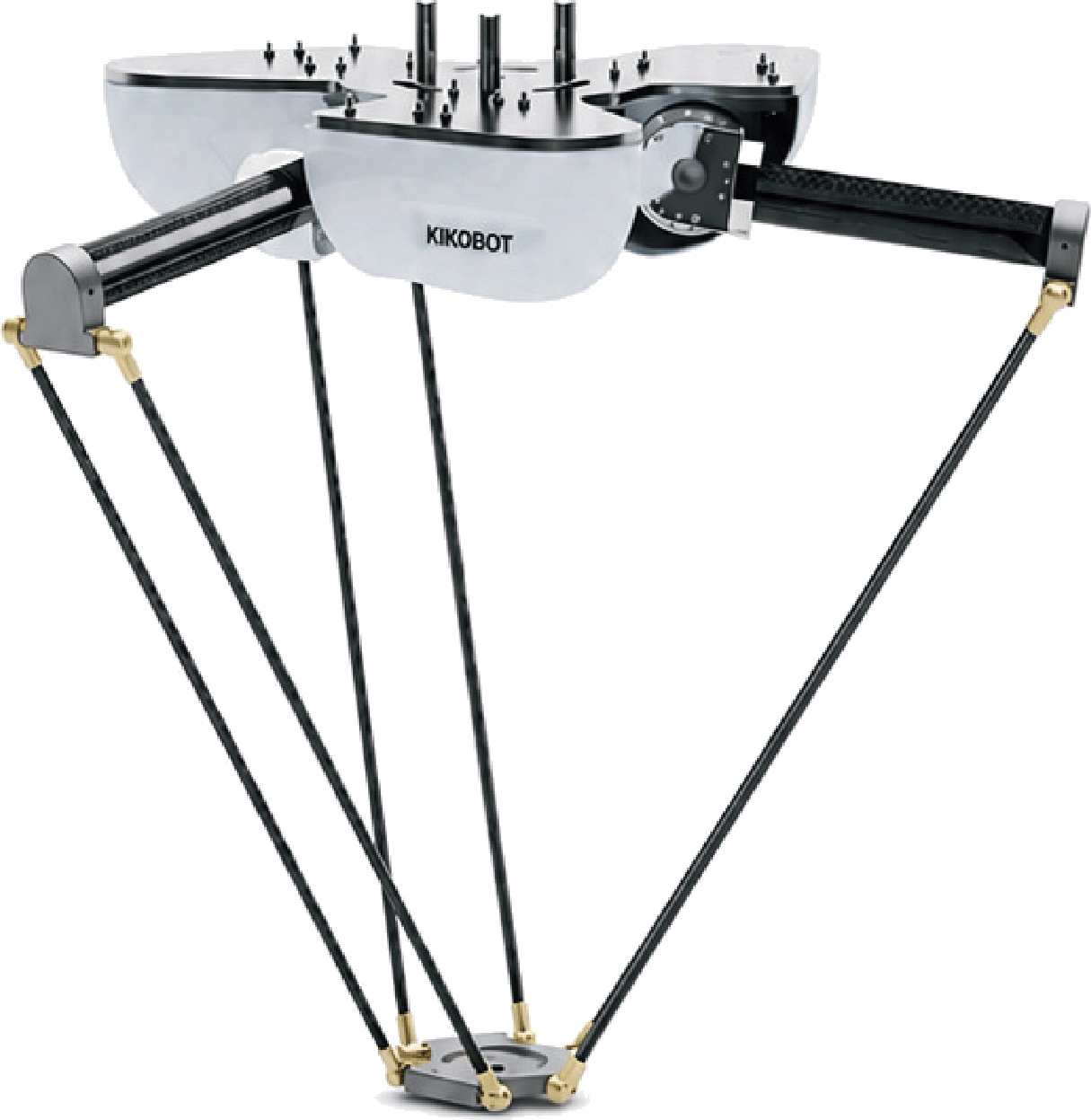

Delta robots
DI Series
High-speed pick-and-place with carbon-fibre parallel kinematics. Built for continuous operation where cycle time decides the line rate.
- Payload
- 2 kg
- Workspace
- Ø500–1000 mm
- Max CPM
- 120
Models and selection
Choose the configuration for the job
DI500 and DI1000 share the same payload, repeatability and maximum CPM; select by workspace.
DI1000
Ø1000 × 350 mm workspace
Technical specifications
Scroll horizontally to view and compare every column.
| PARAMETER | Kikobot DI500 | Kikobot DI1000 |
|---|---|---|
| Degrees of freedom | 3 (4 or 5 variants) | 3 (4 or 5 variants) |
| Payload | 2 kg | 2 kg |
| Workspace | Ø500 × 220 mm | Ø1000 × 350 mm |
| Repeatability | 0.5 mm | 0.5 mm |
| Max CPM | 120 | 120 |
| Weight (approx.) | 20 kg | 20 kg |
| Installation | Overhead mounting | |
| Communication | EtherCAT | |
| Control software | Kikobot Delta Studio | |
| Power input · operating temperature | 100–240 V AC · 0–80 °C | |
Key features
High speed and accurate
Lightweight structure
Easy programming
Quick deployment
Smart integration
Standard platform
Published platform and delivery scope
The published DI platform specification includes the following across DI500 and DI1000.
Kikobot Delta Studio
Control software for programming DI Series routines.
EtherCAT
The standard communication interface on both published models.
Overhead mounting
The standard installation method for DI500 and DI1000.
100–240 V AC
50/60 Hz power input.
Why Kikobot
Why choose the Kikobot DI platform
Common DI platform
DI500 and DI1000 share the published payload, repeatability, maximum CPM, communication and control-software specification.
Kikobot Delta Studio
Both models use Kikobot Delta Studio as their control software.
Applications
Where DI robots fit
Pick and place
Packaging and logistics
Sorting and handling
Inspection and testing
Food and beverage processing
Electronics assembly
Research and education
Downloads and quote
Size a DI system for your line
Send the part, required workspace, payload and target cycle. We will use them to discuss the DI model and line configuration.
