3-axis baseline
X, Y and Z axes
Cartesian systems

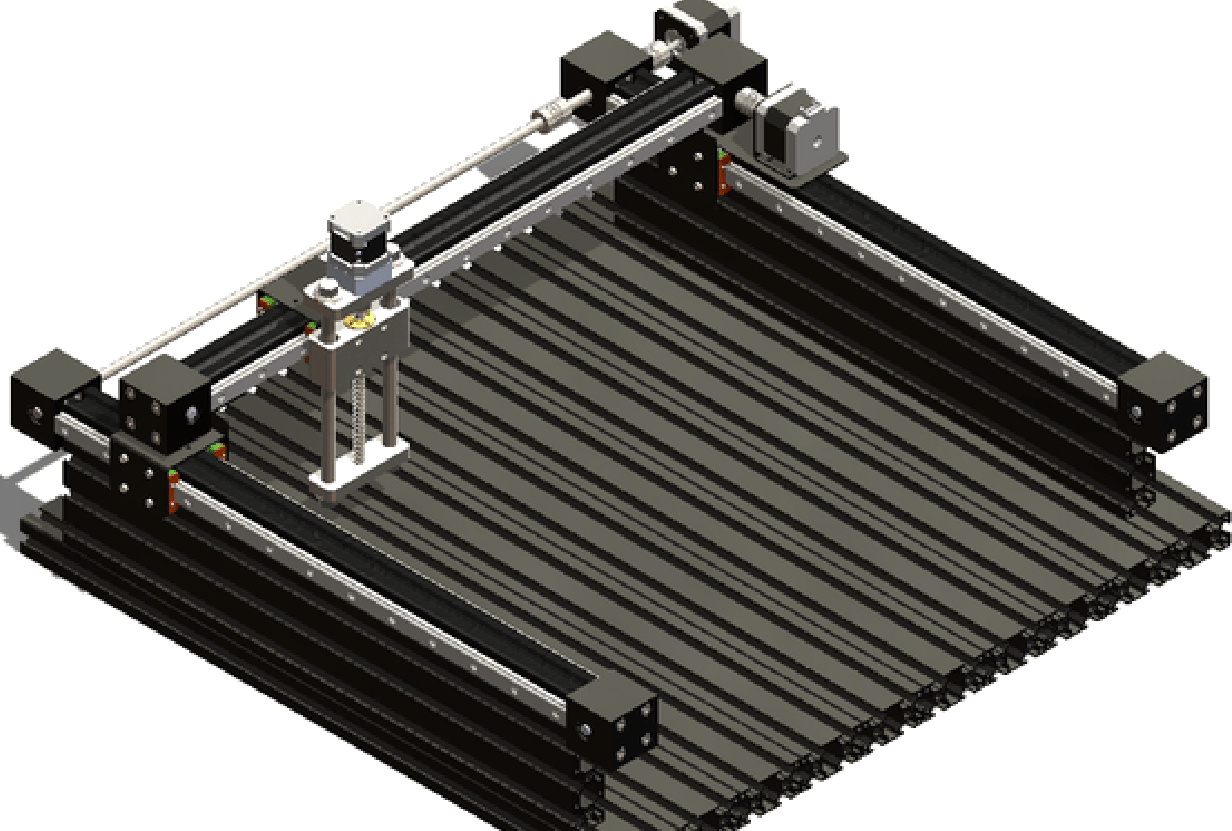

GI Series
Gantry motion built to your working envelope, for the jobs a standard arm cannot reach. Every GI system is engineered around your cell.
- Payload
- Up to 25 kg
- Envelope
- Custom
- Delivery
- Turnkey
Models and selection
Choose the configuration for the job
Start with the working envelope and payload, then specify the axes and structure around the application.
Fourth-axis option
Fourth axis optional
Custom working envelope
Specified with you for the cell
Configuration parameters
Scroll horizontally to view and compare every column.
| PARAMETER | GI Series | Notes |
|---|---|---|
| Axes | 3 (X, Y, Z) | Fourth axis optional |
| Payload | Up to 25 kg | Application dependent |
| Working envelope | Custom | Specified with you |
| Repeatability | To be specified | Depends on span and payload |
| Typical use | Dispensing · routing | Large-format handling |
| Structure | Aluminium extrusion | Steel base option |
| Delivery | Design, build, install, support | |
| Control | Kikobot controller | |
| Integration | Vision, grippers, dispensers | |
| Lead time | Quoted per project | |
Key features
Custom envelope
Heavier payloads
Process-ready
Engineered in-house
Installed and supported
Standard platform
Published platform and delivery scope
Each GI project is specified around the cell, with the following platform and delivery scope defined on the page.
Kikobot controller
The control platform specified for GI systems.
Engineered delivery
Design, build, installation and support are included in the stated delivery scope.
Process integration
GI systems are configured for vision, grippers and dispensers as required by the application.
Why Kikobot
Why choose Kikobot for a cartesian system
Specified to the cell
The working envelope is configured around the required span, stroke, height and payload.
Kikobot control
GI systems use the Kikobot controller and are configured for the required process integration.
Design through support
The stated delivery scope covers design, build, installation and support.
Applications
Where GI systems fit
Dispensing
Routing
Deburring
Large-format handling
Downloads and quote
Define your GI working envelope
Send the required span, stroke, height, payload and process. We will use them to discuss the axes, structure and integration scope.
